ESP Pump


Vendor pump curve

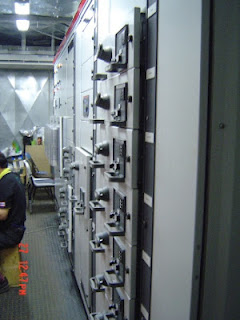

LV MCC

Step up transformer (customer has only LV generators that are available)


Variable speed drive

MV cables


Terminated junction boxes to ESP vendor's cables


ESP connector


MV cables connected to X'Mas
ESD cables

ESP HMI (note: no subsea valve to connect to wellhead control panel, because it always opened prevent back pressure whe ESP pump trip

ESP pump supplied by vendor

ESP pump




installed ESP to tubing


Installed ESP cable along tubing


Installed cable


Installed cable
